Formax FD2056 Pressure Sealer

Formax FD2036 Pressure Sealer

Ideal solution for streamlining your post processing.

The AutoSeal® FD2056 is a fully automatic pressure sealer which provides the ultimate high-volume tabletop solution for processing pressure sensitive one-piece mailers. Designed with ease of operation and efficiency in mind, the FD2056 features a full-color touchscreen control panel, and automatically detects and adjusts for 11", 14" and 17" forms. It offers 5 pre-programmed standard folds for even panel C, V, Z and uneven/eccentric C and Z folds. It also has the ability to store up to 35 custom fold settings with the simple touch of a button.

The FD2056 utilizes a drop-in three-roller feed system which produces dependable feeding of forms with no paper fanning required. Forms are processed at speeds up to 16,450 per hour, and are output to an integrated telescoping conveyor with automated nip roller positioning, capable of holding up to 500 processed forms. The color touchscreen control panel makes it simple for untrained operators to walk up and start processing pressure seal forms with little to no instruction.

The FD2056 advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs.

display

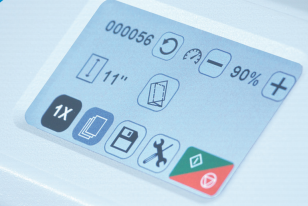

Touchscreen control panel
fold plate

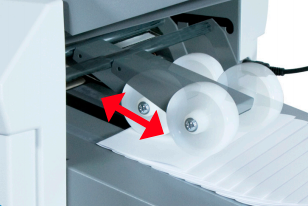

AutoStack™ Stacker Wheels
catch tray

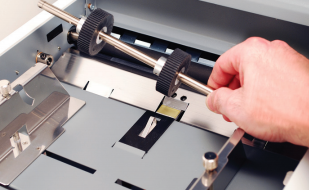

Removable Feed Wheels
Operational Features
Fast!: Large jobs are processed quickly at speeds of up to 16,450 pieces per hour
Color Touchscreen Interface: A large full-color touchscreen control panel allows anyone to walk up and start processing forms in seconds
Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required
17" Form Capability: Flexibility to process forms up to 17" in length
AutoStack™ Wheels: Fully-automated stacker wheels eliminate moving them by hand when switching form sizes and fold types
Integrated Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces
Noise Reduction: Top and side covers are insulated to reduce operating noise, and fold plates are completely enclosed
Fault Detector: Detects double feeding and any faults
6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control
AutoBatch™ Counter: Programmable to process pre-set number of forms into sets with a delay
Folding Features
Preset Folds in Common Paper Sizes: Pre-programmed for 5 popular fold types in 11 - 17" forms and uneven C and Z in 14" forms, totaling 11 programmed fold settings
Stores 35 Custom Folds: Up to 35 custom folds can be programmed and stored into memory
Standard Fold Settings Modification: Even the preset fold types can be modified individually for each paper size for maximum flexibility and customization
Techincical Features
Adjustable Feed Table Pressure: Seven positions can be easily chosen to increase or decrease hopper tension to better feed thick and thin paper stocks
Seven-Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
Removable Roller Cover: Easily removed for improved access to sealer rollers and exit area
Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers
Locking Cabinet: Fully enclosed for storage
402 Series Jogger: Reduces static electricity and aligns forms for proper feeding
V-Stack36i Stacker: Vertically stacks up to 22" of folded documents, making them easier to unload

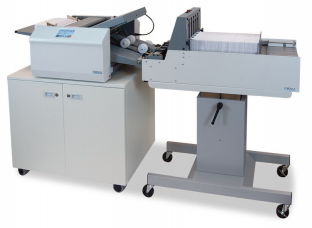

options

Hopper Capacity:
Up to 500 forms 20#
Speed:
Up to 16,450 forms per hour
(based on 11 (279mm) Z-Fold)
Pre-Set Folds:
Pre-programmed for C, V, Z in 11 - 17 forms, uneven C and Z 14 forms
Pre-Set Paper Sizes:
11, 14, 17
Custom Folds:
Stores up to 35 custom folds into memory
Paper Size: (W x L)
Min: 3.5 W x 5 L (88.9 W x 127 L mm)
Max: 12.25 W x 18 L (311 W x 457 L mm)
Dimensions: (L x W x H)
Closed: 43 x 21.28 x 16 (109 x 54 x 41 cm)
Fully Extended: 55 x 21.28 x 16 (140 x 54 x 41 cm)
Weight:
127 lbs (97kg)
Power:
110-240VAC 50/60 Hz
Certifications:
UL & CE applied for

All technical data and dimensions are approximate values
