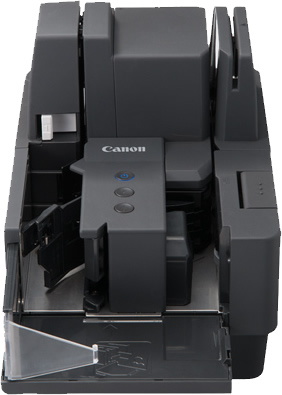

Canon imageFORMULA CR150/CR150N Check Scanner/Transport

Canon imageFORMULA CE120 Check Scanner

A small footprint with big capabilities.

Optimal for teller counters and merchant desks, the CR150 check transport's small footprint can fit comfortably on countertops with limited workspace. The scanner is designed for easy use and has multifunction compatibility, combining the functions of many peripherals found at the teller station into one single device, thereby reducing counter space requirements and helping to improve efficiency.

For added usability, the CR150 check transport has two additional USB ports in the hub to connect to additional USB peripheral equipment such as PIN pad, receipt printer, fingerprint authentication device, and more.

To deliver high image quality, the CR150 check transport is equipped with image processing features such as Fine Text Filtering to allow for sharper image capture with less distortion, delivering better Optical Character Recognition (OCR) accuracy. Magnetic Optical Character Recognition (MOCR) is also used, combining Magnetic Ink Character Recognition (MICR) reading with OCR processing to capture accurate MICR data. These capabilities ensure high read rates that mitigate risks associated with digitizing checks.

The CR150N has the addition of an ethernet port which allows the use of the scanner from other computers connected on the network.

Wide Range of uses
  • Can help assist in moving paper checks and related documents
    • Front-counter teller settings, merchant/remote deposit capture (RDC) applications, and remittance processing
    • Back-office/branch capture, lockbox applications
  • Ideal for banks, credit unions, and retail
Simple, Compact Design
  • Small footprint
    • Optimal for teller counters, merchant desks, and areas with limited workspace
  • Multifunction compatibility
    • Combines functions of many peripherals found at teller station into one device
Item handling
  • Scans up to 150 items per minute
  • 150-item Automatic Document Feeder (ADF)
  • Two additional USB ports for CR-150 for added USB peripheral equipment
Scalable Features
  • Built-in five line imprinter prints and captures endorsement information on checks
  • Modular and scalable – functionality can be added as required
  • Dedicated card-reading slot for plastic and embossed cards
  • Magnetic swipe reader (MSR)2 to capture information from the magnetic stripe of a bank card
  • Supports the industry standard check-scanning software, Ranger Transport API
Precise Image Capture
  • Deskew/straighten scanned images
  • Sharp image capture with low distortion using Fine Text Filtering
  • Magnetic/optical character recognition (MOCR) technology combines MICR reading with OCR processing
    • Help ensure accurate MICR data capture without sacrificing speed
Canon imageFORMULA CR150 Check Scanner
Document Feeding:
Automatic
Document Size:
Height: 2.7 - 4.3 in.
Length: 3.5 - 9.6 in.
Document Weight:
.003" - .008" (17 - 40 lb bond)
Feeder Capacity:
Approx. 150 sheets or less
Scanning Element:
Contact Image Sensor (CMOS)
Light Source:
RGB LED
Scanning Side:
Simplex
Duplex
Scanning Modes:
Grayscale
Black and White
Fine Text Filtering
Error Diffusion
256 - Level Grayscale
16-Level Grayscale
24-bit Color (card scan only)
Optical Resolution:
600 dpi
Output Resolution (dpi):
100
120
150
200
240
300
600
Simplex Scanning Speeds  (Checks per Minute):
Black and White: up to 150 cpm
Grayscale: up to 150 cpm
Duplex Scanning Speeds  (Checks per Minute):
Black and White: up to 150 cpm
Grayscale: up to 150 cpm
Suggested Daily Volume:
12,000 scans
MICR:
E13B
CMC-7
OCR:
E13B
OCR-A
OCR-B
Check Writer
Universal Character
Interface:
Hi-Speed USB 2.0
Ethernet port (CR150N only)
Supported OS:
Windows Vista 32-bit and 64-bit (SP2 or later)
Widows7 (SP1 or later)
Widows 8.1 32-bit and 64- bit
Widows 10 32-bit and 64-bit
Windows Server 2008R2/2012R2
Dimensions:
8.0" x 6.7" x 9.4" (H x W x D)
Weight:
Approx. 7.1 lb.
Software:
Ranger™ Transport API
Canon Scanning Utility
Other Features:
Auto Page Size Detection
Color Dropout/ Enhancement
Fine Text Filtering
Imprinter
Border Removal
Edge Emphasis
Add-on
IQA
Contrast Adjustment
MOCR/MICR
Deskew
Color Deviation Correction
OCR
Shading Compensation
Scan Area Setting
Multistream
Options:
Exchange Roller Kit
Imprinter Ink Absorber
Magnetic Swipe Reader

All technical data and dimensions are approximate values
