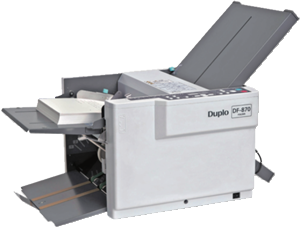

Duplo DF870 Automatic Tabletop Folder

Duplo

Reliable Folding at Your Finger tips

The automatic Duplo DF-870 Tabletop Folder precisely folds documents such as brochures, menus, letters and invoices at up to 241 letter-size sheets per minute. Users can select from six of the pre-programmed folds for touch-and-go folding or customize their own for non-standard folds. Cross folding for right-angle folds is also possible. Additionally, the DF-870 paper folder has five popular sheet sizes (letter, legal, ledger, 1/2 letter, and 1/2 legal) pre-programmed for quick set up and user convenience. Fold position adjustments are easily done via the control panel. Once the paper size and fold type are entered, the ejection roller automatically moves into position.

With a friction feed system and adjustable paper and feed separator pressure controls, a wider range of paper stock up to 157 gsm can be fed with increased accuracy and consistency. Non-stop productivity is also ensured with an ascending/descending counter and 500-sheet feed tray capacity. Ideal for any office, church or school, the DF-870 brings easy and reliable folding to your fingertips.

  • Folds up to 241 sheets per minute
  • 500-sheet feed capacity
  • Automatic setting of fold plate and ejection roller
  • Six pre-programmed popular folds
  • Cross folding feature for right-angle folds
  • Electronic fold plate adjustment for custom folds
  • Test button folds two sheets for inspection
Letter Fold
C fold
Single Fold
V fold
Accordion (Z) Fold
Z fold
Cross Fold
Cross fold
Gate (Brochure) Fold
brochure fold
Double Fold
double fold
Half Accordion (Z) Fold
uneven Z fold
Paper Size (WxL)
3.59" x 5.04" to 11.69" x 17"
Paper Weight
52.3 - 157 gsm*
Speed
Up to 241 sheets per minute (letter size)
based on a single/half fold, using A4, fine quality long grain, 81.4 gsm/21.6 lbs. paper
Feed Tray
Up to 500 sheets 64 gsm
Detection
Top cover open
No paper
Miss-feed
Jam
Feed tray position
Folding Modes
Single
Double
Half Accordion
Letter
Accordion
Gate
Cross-Folding (cross single to cross letter)
Custom
Power Supply
120 50/60Hz 1.3 - 0.65A 125W
Dimensions (WxDxH)
In Use: 35.4" x 18.9" x 21.07"
In storage: 25" x 19" x 22"
Weight
75 lbs.

All technical data and dimensions are approximate values
