Binatek BN315 Single Pocket Discriminator

Binatek BN315 Currency Counter

Special design for counting poor quality notes

The BN315 is the most intelligent and reliable multi-currency banknote discriminator using two CIS (contact image sensors) and running on a Linux system.

BN315 uses our advanced image processing technology to recognize currency and discriminate denominations. Various detection technology ensures acceptance of genuine notes and accurate stops on suspect notes.

With a 3.5 inch TFT touch screen and user friendly interface, operators can finish their daily cash processing jobs quickly and easily.

Compact size
Portable and occupy a less place for cashier
Smooth Counting
Excellent performance for counting brand new notes and worn notes

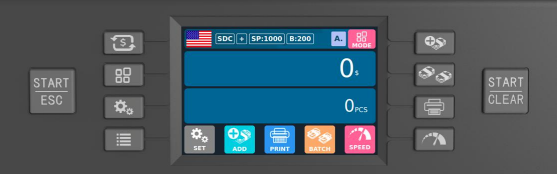

TFT Screen
It has clearly visible 3.5 inch TFT touch screen.
Multi-currencies Capability
1G memory can support almost unlimited currencies quantity
Reliable Counterfeit Detection
Double CIS provide R\B\G\IR images for detection.
It can detect the note by UV, MG, MT, IR, CIS and serial number.
Super Detection(Option): UV transmission and full MG covered
User Friendly Interface
Different menu styles for choice according to preference
Serial Number Read and Print
It can read serial number from both sides, output in TXT format and print the serial number.
Easy Upgrade
It can be upgraded through USB memory stick or PC interface or online for the new currency and improved software.
Flexible and easy FW developing
The firmware software can be developed based on the data collected in field through USB or LAN port;
Easy Jam Removal and Sensor Cleaning
It is easy to open the passage from rear side to clear jammed notes and clean the sensors.
Binatek BN315 Currency Counter
Hopper Capacity:
600pcs
Stacker Capacity:
200pcs
Currency Support:
5 currencies (Standard)
30 currencies (Option)
Display:
Color TFT
LCD (3.5 inch)
Touch Screen
Suitable Note Size:
Length: 100mm ~ 175mm
Width: 50mm ~ 90mm
Thickness: 0.05mm ~ 0.12mm
Speed (pcs / min)
800, 1000, 1200 (Mix Mode)
800,1000 (Serial Number Reading Mode)
RAM:
1G
Batch Number:
5-199pcs
Connectivity:
USB for data collection and software upgrade
RS232 for PC communication
RJ 12 for external display
WLAN for data collection and software upgrade in batch
Counterfeit Detection:
Ultraviolet detection (UV)
Magnetism detection (MG)
Metal thread detection (MT)
Infrared image detection (IR)
Double sides image detection
Power Supply:
AC 220V 50Hz ±10%
AC 110V 60Hz ±10%
Dimensions:
287 x 240 x 232 mm (HxWxD)
Weight:
5.9 KG

All technical data and dimensions are approximate values
